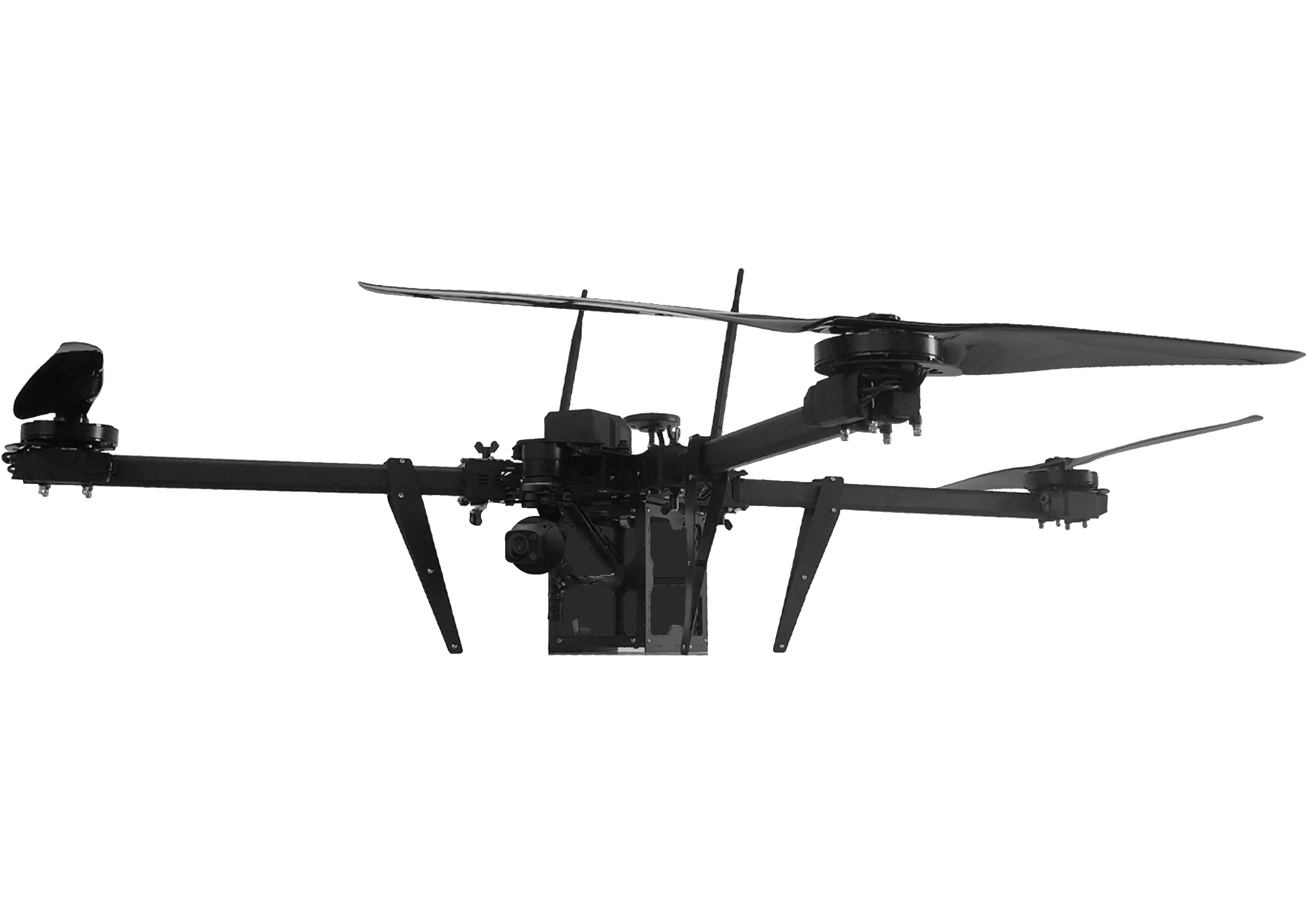

TR-2
Tactical Rotor
Long Endurance Drone

FEATURES

  • Long endurance flight time over 60 minutes. The longest time ever with lithium battery technology.
  • Equipped with a 4K Object Tracking & Laser Night Vision Gimbal Camera
  • 3 Axis computer stabilized zoom gimbal camera for stable motion picture support.
  • Real-time low latency high-resolution transmission.
  • Quick deployment without any hand tool required, simple and easy on operation and maintenance.
  • A military scout drone that has better duration under this extremely competitive cost in the market.

Gimbal Camera

SPECIFICATIONS

Airframe Parameters

Frame Shape

Rotor to rotor length

Weight of Airframe

Weight of Battery

Total Weight

Dimensions Unfolded*

Dimensions Folded*

Material

X-4 Quadrocopter

1280 mm

4.3 Kg ( ≈ 9.48 lbs )

3.4 Kg ( ≈ 7.50 lbs )

7.7 Kg (Equipped with a 10X 3-Axis Computer Stabilized Gimbal Camera)

900 mm (L) x 900 mm (W) x 270 mm (H)

850 mm (L) x 330 mm (W) x 270 mm (H)

Carbon Fiber, Aviation Grade Aluminum

* Not Inclusive Propellers and Antennas

Performance Parameters

Total Trust Force

A.U.W.

Flight Duration

Flight Distance

Cruise Speed

Wind Resistance

19.2 Kg

9.6 Kg

60 Mins

10 Km

10 M/s (36 KM / h)

Beaufort Scale 5

4K Object Tracking & Laser Night Vision Gimbal Camera

Weight

Size

Video output

Input Voltage

Effective pixels

Zoom range

Range of control angle

Control precision

Day-night mode

Storage

Working temperature range



405g

85.8×86.9×129.3mm

3840*2160 / 4K@30fps

Operating Voltage : 14~53VDC

8.29MP

1-10x optical, 1-40x digital

Pitch: -157°~+70°, Yaw: ±360° constantly

Pitch/ roll/yaw: ±0.01°

Auto

SD Card(supports max.128G)

-20°C~50°C

Ground Control Station

Remote Control System
Telemetry System
Wireless Video Transmission
Dimensions
Weight
Communication Frequency
Range
RF Power Output
Working Duration
Software Support OS
Waypoints
Screen Resolution
Display Screen
CPU Processor
Memory
Storage
Internet Support
I/O
Working Voltage
Antennas

Highly Integrated 3-in-1 Hand-held Ground Control System

360 mm (L) x 190 mm (W) x 40 mm (H)
< 2100g
2.4 GHz and Confidential Frequencies can be made
10 ~ 30 Km ( Clear of Interference, Non-Obstacle Condition )
1 W
4 Hrs
Linux, iOS, MacOS, Win10
> 60,000 Points
1280 x 800
10” Industrial Touch Screen
Intel Chipset
> 4GB
> 64 GB
Wifi + BT or  4G GSM (Options)
USB 3.0, Ethernet Port, HDMI, RS232, RS485, RS422, TTL
2S ~ 3S    7.4 V ~ 12 Vdc
2 dBi Dipole

Click to Download
Specification PDF

TR-2
Tactical Rotor
Long Endurance Drone

FEATURES

  • Long endurance flight time over 60 minutes. The longest time ever with lithium battery technology.
  • Equipped a High Definition 10x Zoom Camera (Can be upgraded to higher focal length or thermal camera)
  • 3 Axis computer stabilized zoom gimbal camera for stable motion picture support.
  • Real-time low latency high resolution transmission.
  • Quick deployment without any hand tool required, simple and easy on operation and maintenance.
  • A military scout drone which has better duration under this extremely competitive cost in the market.

Gimbal Camera

SPECIFICATIONS

Airframe Parameters

Frame Shape：X-4 Quadrocopter
Rotor to rotor length：1280 mm
Weight of Airframe：4.3 Kg
Weight of Battery：3.4 Kg
Total Weight：7.7 Kg (Equipped with a 10X 3-Axis Computer Stabilized Gimbal Camera)
Dimensions Unfolded*：900 mm (L) x 900 mm (W) x 270 mm (H)
Dimensions Folded*：850 mm (L) x 330 mm (W) x 270 mm (H)
Material：Carbon Fiber, Aviation Grade Aluminum
* Not Inclusive Propellers and Antennas

Performance Parameters

Total Trust Force：19.2 Kg

A.U.W.：9.6 Kg

Flight Duration：60 Mins

Flight Distance：10 Km

Cruise Speed：10 M/s (36 KM / h)

Wind Resistance：Beaufort Scale 5

4K Object Tracking & Laser Night Vision Gimbal Camera

Weight：405g

Size：85.8×86.9×129.3mm

Video output：3840*2160 / 4K@30fps

Input Voltage：Operating Voltage : 14~53VDC

Effective pixels：8.29MP

Zoom range：1-10x optical, 1-40x digital

Range of control angle：Pitch: -157°~+70°, Yaw: ±360° constantly

Control precision：Pitch/ roll/yaw: ±0.01°

Day-night mode：Auto

Storage：SD Card(supports max.128G)

Working temperature range：-20°C~50°C

Ground Control Station

Remote Control System

Telemetry System：Highly Integrated 3-in-1 Hand-held Ground Control System

Wireless Video Transmission

Dimensions：360 mm (L) x 190 mm (W) x 40 mm (H)

Weight：< 2100g

Communication Frequency：2.4 GHz and Confidential Frequencies can be made

Range：10 ~ 30 Km ( Clear of Interference, Non-Obstacle Condition )

RF Power Output：1 W

Working Duration：4 Hrs

Software Support OS：Linux, iOS, MacOS, Win10

Waypoints：> 60,000 Points

Screen Resolution：1280 x 800

Display Screen：10” Industrial Touch Screen

CPU Processor：Intel Chipset

Memory：> 4GB

Storage：> 64 GB

Internet Support：Wifi + BT or4G GSM (Options)

I/O：USB 3.0, Ethernet Port, HDMI, RS232, RS485, RS422, TTL

Working Voltage：2S ~ 3S  7.4 V ~ 12 Vdc

Antennas：2 dBi Dipole

Operating temperature：-10 ~ +60°C
